Micro-D Connectors in Cable Assemblies

Names: Micro-miniature D connectors or micro rectangular connectors

Mil specifications for micro-D connectors

Cable to Micro-D Assembly Chart

Cable Micro D connectors Assembly
Filtering Options
Number of Conductors Compatible Shielding Wire AWG
(Range)		 Type Number of
Contacts
Contact
Platings
Contact
Spacing
(center to
center)
 Contact
Rating
in Amps
(max)		 Backshells
Minimum Maximum No shield Single Double Straight Right
angle		 Multiple
port		 Types Concealed
2 9 √ √ √ 24-30 9 position 9 Gold 0.050" 3.0 √ √ √ EMI /
Noise		 available
2 15 √ √ √ 24-30 15 position 15 Gold 0.050" 3.0 √ √ √ EMI /
Noise		 available
4 21 √ √ √ 24-30 21 position 21 Gold 0.050" 3.0 √ √ √ EMI /
Noise		 available
4 25 √ √ √ 24-30 25 position 25 Gold 0.050" 3.0 √ √ √ EMI /
Noise		 available
5 31 √ √ √ 24-30 31 position 31 Gold 0.050" 3.0 √ √ √ EMI /
Noise		 available
6 37 √ √ √ 24-30 37 position 37 Gold 0.050" 3.0 √ √ √ EMI /
Noise		 available
10 51 √ √ √ 24-30 51 position 51 Gold 0.050" 3.0 √ √ √ EMI /
Noise		 available
* Not all connector options shown.

Contact Material and Plating Specifications
Contact material Pin
Socket		 Beryllium Copper
Phosphor Bronze
Plating Pin or Socket 50 micro-inch Gold over Nickel base plating
Connector shells All Aluminum alloy
Backshells All Aluminum
Hardware Jackscrews, jackposts, bands Stainless steel
Connector shell finishes All Electroless Nickel or Cadmium/Olive Drab or Black Anodize; other finishes available
Backshell finishes All Same as connector shell finishes

Detailed specifications can be provided upon request


Micro-D Connector Drawings
Drawings shown are for pin connectors, viewed into mating surface.
Drawings are not to scale.



9 contact, 9 position micro-D connector contact insert arrangement



15 contact, 15 position micro-D connector contact insert arrangement



21 contact, 21 position micro-D connector contact insert arrangement



25 contact, 25 position micro-D connector contact insert arrangement



31 contact, 31 position micro-D connector contact insert arrangement



37 contact, 37 position micro-D connector contact insert arrangement

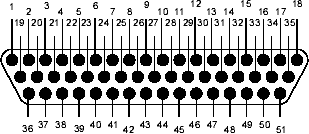

51 contact, 51 position micro-D connector contact insert arrangement
